4SP5

PRODUCTS

product description Technical Parameters Performance curve

Applications
♦For water supply from wells or reservoirs.

♦For domestic use,for civil and industrial applications.

♦For garden use and irrigation.

Operating conditions
♦Maximum fluid temperature up to +35℃.Maximum sand content:0.25%.
♦Maximum immersion:90m.
♦Maximum well diameter:4” .
Motor and PumpRewindable motor
♦Three-phase:380V-415V/50HzSingle-phase:220V-240V/50Hz
♦Equip with start control box or digital auto-control boxNEMA dimension standards
♦curve tolerance according to lso 9906
Options on request
♦Special mechanical seal
♦Other voltages or frequency 60 Hz
♦Single phase motor with built-in capacitor
Warranty: 1 year
♦(according to our general sales conditions).

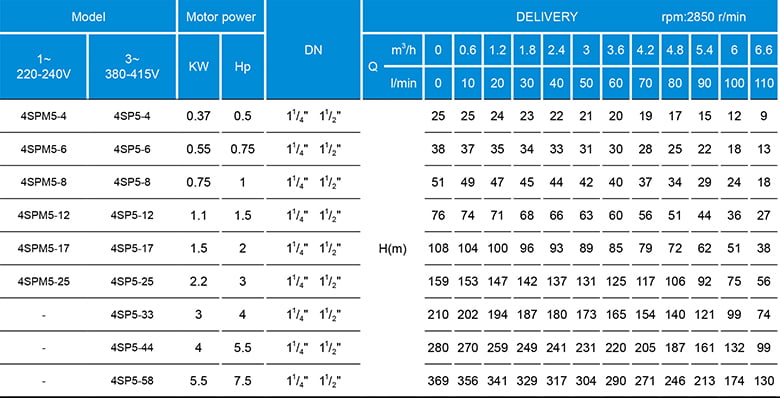

4SPM5-4
4SPM5-6
4SPM5-8
4SPM5-12
4SPM5-17
4SPM5-25
