4SD2

PRODUCTS

product description Technical Parameters Performance curve

Applications
♦For water supply from wells or reservoirs.

♦For domestic use,for civil and industrial applications.

♦For garden use and irrigation.

Operating conditions
♦Maximum fluid temperature up to +35℃.Maximum sand content:0.25%.
♦Maximum immersion:90m.
♦Maximum well diameter:4” .
Motor and Pump
♦Rewindable motor
♦Single-phase: 220v-240V/50HzThree-phase: 380v-415V/50Hz
♦Equip with start control box or digital auto-control boxPumps are designed by casing stressed
♦NEMA dimension standards
♦Curve tolerance according to lso 9906
Options on request
♦Special mechanical seal
♦Other voltages or frequency 60 Hz
♦Single phase motor with built-in capacitor
Warranty: 1 year
♦(according to our general sales conditions).

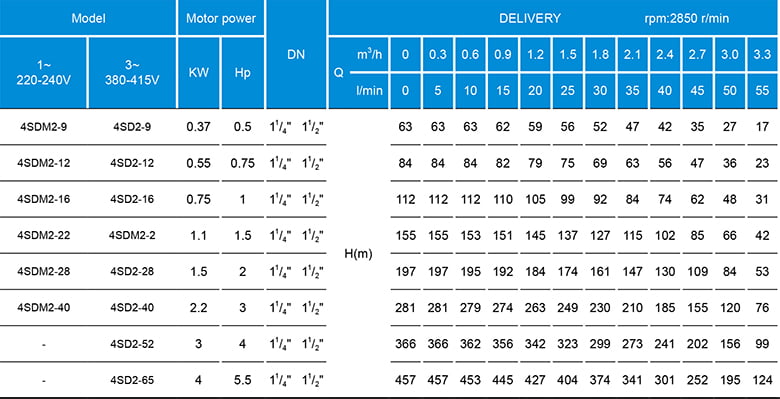

4SDM2-9
4SDM2-12
4SDM2-16
4SDM2-22
4SDM2-28
4SDM2-40
