LAR100

PRODUCTS

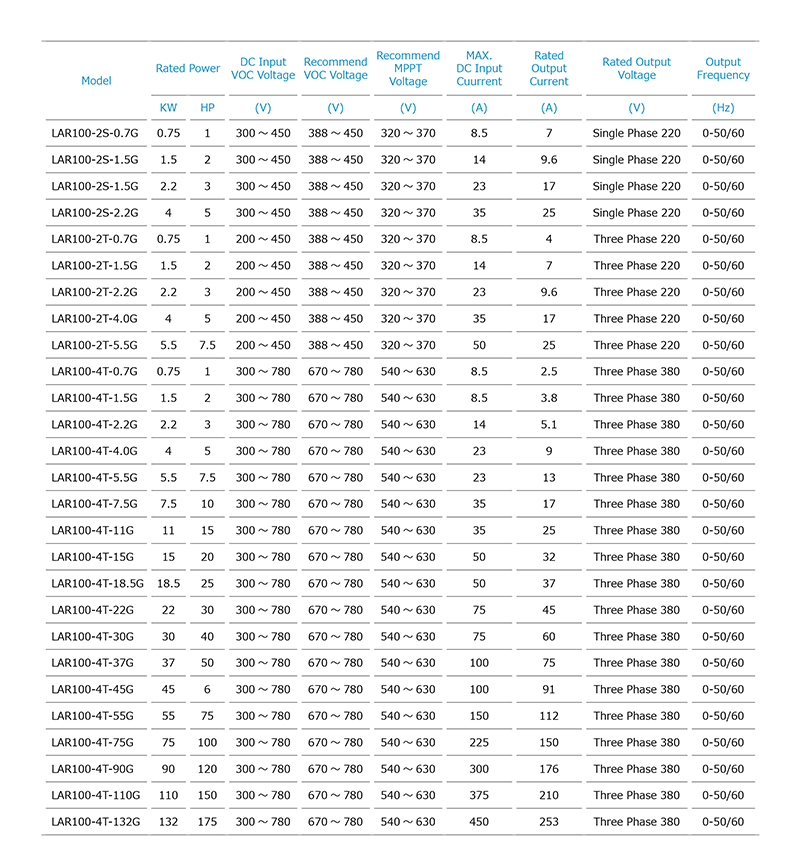

product description Technical Parameters Performance curve

●Apply to all kinds of single phase or 3 phase AC induction motor.
●With infineon IGBT.Maximum power point tracking (MPPT) algorithm for dynamic VI,fast response speed.
●Good stability,the efficiency of MPPT 99.99%.

●Both AC and DC input,but can not use DC and AC at the same time.
●For single phase inverter,MPPT working voltage is 180~450V.
●For three phase inverter,MPPT working voltage is 250~800V.

●Remote control,support RS323/RS485 protocol.
●Outdoor working environment temperature:-10~+50℃.
●Start in the morning and stop in the late afternoon full automatically.

●Full protections:overload,over current,over voltage,under voltage,short circuit,dry pumping etc.
●PV reversed connection protection.
