6SR45

PRODUCTS

product description Technical Parameters Performance curve

Applications
♦For water supply from wells or reservoirs.

♦For domestic use,for civil and industrial applications.

♦For garden use and irrigation.

Operating conditions

♦Maximum fluid temperature up to +35°℃.

♦Maximum sand content:0.25%.

♦Maximum immersion:100m.

♦Maximum well diameter:6” .

Motor and Pump
♦Rewindable motor

♦Three-phase:380V-415V/50Hz

♦Single-phase:220V-240V/50Hz

♦Equip with start control box or digital auto-control box

♦NEMA dimension standards

♦Curve tolerance according to lso 9906
Options on request
♦Special mechanical seal
♦Other voltages or frequency 60 Hz
Warranty: 1 year
♦(according to our general sales conditions).

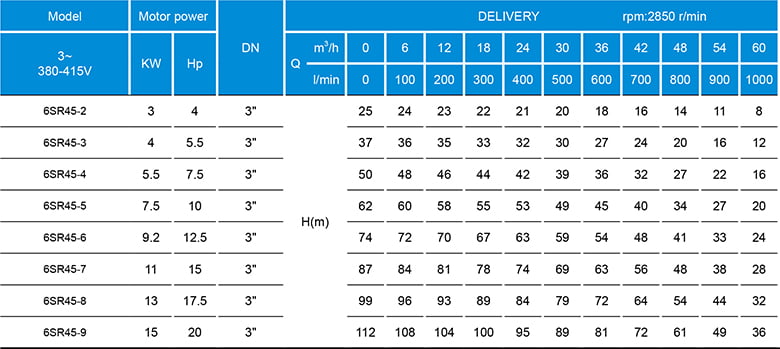

6SR45-2
6SR45-3
6SR45-4
6SR45-5
6SR45-6
6SR45-7
6SR45-8
6SR45-9
