6SR10

PRODUCTS

product description Technical Parameters Performance curve

Applications
♦For water supply from wells or reservoirs.

♦For domestic use,for civil and industrial applications.

♦For garden use and irrigation.

Operating conditions

♦Maximum fluid temperature up to +35℃.

♦Maximum sand content:0.25%.

♦Maximum immersion:100m.

♦Maximum well diameter:6" .

Motor and Pump
♦Rewindable motor

♦Three-phase:380V-415V/50Hz

♦Single-phase:220v-240V/50Hz

♦Equip with start control box or digital auto-control box

♦NEMA dimension standards

♦curve tolerance according to lso 9906
Options on request
♦Special mechanical seal
♦Other voltages or frequency 60 Hz
Warranty: 1 year
♦(according to our general sales conditions).

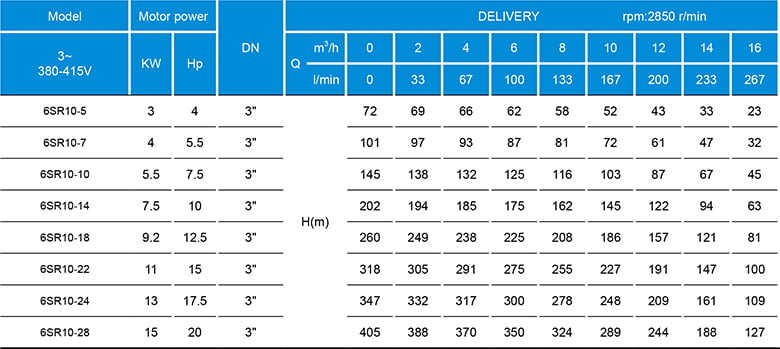

6SR10-5
6SR10-7
6SR10-10
6SR10-14
6SR10-18
6SR10-22
6SR10-24
6SR10-28
